Zutritt

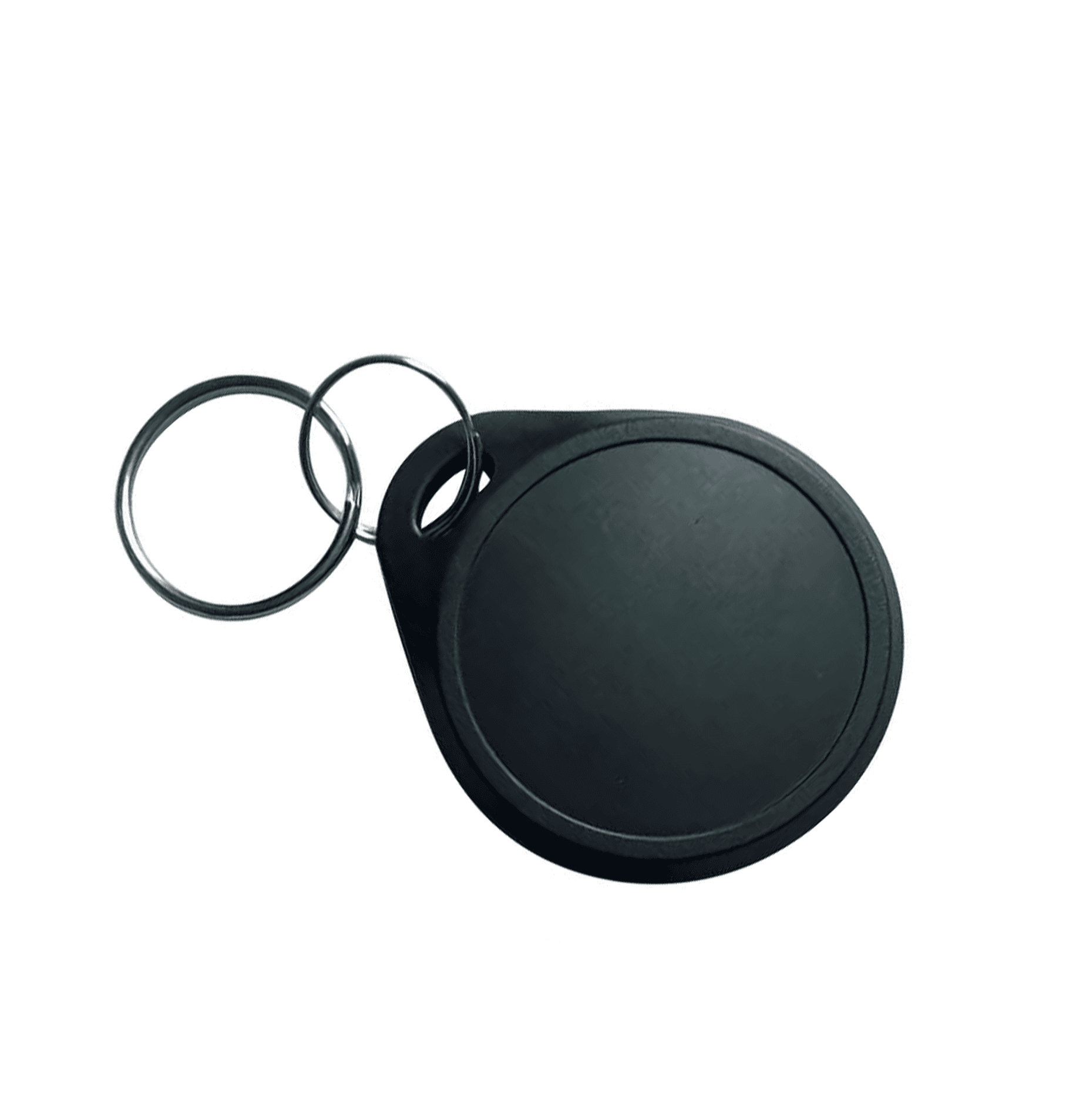

LCN-ZTS2 Issendorff KG
Black Transponder Keychain The LCN-ZTS2 is a practical keychain equipped with two integrated transponders for 125 kHz and 13.56 MHz. It is ideal for use in conjunction with LCN modules that can recognize transponders and trigger actions in the LCN system. Application Examples Access control in residential and commercial buildings. Integration into smart home systems for device control. The LCN-ET2T, LCN-GT2T, and LCN-ULT modules recognize the LCN-ZTS2 transponder and trigger freely programmable commands in the LCN system. Technical Data Dimensions: approx. 56mm x 30mm
LCN-ZTK2 Issendorff KG
Transponder card (credit card) for the LCN transponder module The LCN-ZTK2 is an advanced transponder card equipped with two integrated transponders for 125kHz and 13.56MHz. This card is specifically designed for use with the LCN transponder module and allows for flexible use in various applications. Application Examples Access control in residential and commercial buildings. Integration into smart home systems for device control. The card has the standard size of a credit card and can be printed on request, making it ideal for personalized applications. Technical Data Dimensions: 86 mm x 54 mm
LCN-GT2TB Issendorff KG
Nearfield Communication (NFC) transponder with two capacitive buttons and IR receiver; in black The LCN-GT2TB is a versatile device that combines a Nearfield Communication (NFC) transponder reader, a glass button panel with two capacitive buttons, and an infrared receiver. This product allows for easy control of lighting and other devices through touch or NFC transponder cards. The buttons are arranged behind a sturdy glass panel, providing a user-friendly interface. Application Areas The LCN-GT2TB is ideal for use in modern living spaces, offices, or public facilities where flexible and user-friendly control of lighting and other electrical devices is required. The ability to customize the buttons makes it a versatile solution for various applications. Technical Data Size: 75 mm x 75 mm Compatibility: Supports NFC transponders of type ISO14443-A and ISO15693
LCN-GT2TW Issendorff KG
Nearfield Communication (NFC) transponder with two capacitive buttons and IR receiver; in white The LCN-GT2TW is a multifunctional device that combines a Nearfield Communication (NFC) transponder reader, a glass button panel with two capacitive buttons, and an infrared receiver. This innovative product allows for easy control of lighting and other devices through touch or NFC transponder cards. The buttons are arranged behind a sturdy glass panel and provide a user-friendly interface. Application Areas The LCN-GT2TW is ideal for use in modern living spaces, offices, or public facilities where flexible and user-friendly control of lighting and other electrical devices is required. The ability to individually assign the buttons makes it a versatile solution for various applications. Technical Data Size: 75 mm x 75 mm Compatibility: Supports NFC transponders of type ISO14443-A and ISO15693
LCN-GT2TC Issendorff KG
Nearfield Communication (NFC) transponder with two capacitive buttons and IR receiver; in champagne The LCN-GT2TC is an innovative device that combines a Nearfield Communication (NFC) transponder reader, a glass button panel with two capacitive buttons, and an infrared receiver. This product allows for easy control of lighting and other devices through touch or NFC transponder cards. The buttons are arranged behind a sturdy glass panel, providing a user-friendly interface. Application Areas The LCN-GT2TC is ideal for use in modern living spaces, offices, or public facilities where flexible and user-friendly control of lighting and other electrical devices is required. The ability to individually assign the buttons makes it a versatile solution for various applications. Technical Data Size: 75 mm x 75 mm Compatibility: Supports NFC transponders of type ISO14443-A and ISO15693
LCN-ET2T Issendorff KG
NFC Transponder Reader with Keypad The LCN-ET2T is an innovative NFC transponder reader that features an integrated 2-button keypad and an IR receiver for the I-connection of an LCN module. It supports 13.561 MHz NFC transponders of type ISO14443-A (Mifare / Legic) and ISO15693 (Legic). Application Examples Expansion of doorbell systems with NFC functionality. Control of lighting and security systems by simply holding an NFC card. The two buttons of the LCN-ET2T can be used in various ways, for example as a doorbell button or to switch the stairwell light. Two operating LEDs inform the user about the current status of the device. Technical Data Dimensions: 160mm x 250mm x 90mm (W x H x D) Protection class: IP65
LCN-GTS2TC Issendorff KG
Nearfield Communication (NFC) transponder with two capacitive buttons and IR receiver; in champagne The LCN-GTS2T combines a Nearfield Communication (NFC) transponder reader for reading chip cards, a glass button panel with two sensor surfaces, and an infrared receiver. The reader supports NFC transponders of type ISO14443-A (Mifare/Legic) and ISO15693 (Legic). The buttons behind a stable glass plate provide the familiar signals of short, long, and release in the LCN system, depending on the type of activation. This allows a doorbell to be activated or lights to be turned on. The labeling of the sensor surfaces is done individually via foil. One red LED per button signals any status in the system as on, blinking, or flickering. The integrated infrared receiver can trigger up to twelve additional functions with the LCN-RT remote control, transmitting a user-defined code and its serial number for identification for security. The dimmable Corona® light ring serves, as with the LCN-GT glass button panels, for decorative wall lighting and as a subtle orientation light. Technical Data Dimensions: 75mm x 75mm
LCN-GFPSW Issendorff KG
Fingerprint sensor; in white The LCN-GFPSW is a state-of-the-art fingerprint sensor designed for the I connection of any LCN module from firmware 190512 onwards. It provides secure and convenient access control by capturing fingerprint data and transmitting it via the LCN bus. With the ability to store up to 999 fingerprints, it is ideal for use in residential and commercial spaces. Application examples Integration into access control systems for residential complexes. Use in offices to ensure access only for authorized personnel. Increased security in public institutions. Technical data Sensor: Fingerprint scanner for max. 999 fingers with live finger detection LEDs: 4 LEDs to indicate sensor status 16 white corona LEDs, controllable via the command "LED GT-brightness" in 10 levels Dimensions: 90mm x 90mm x 16.9mm (5mm glass thickness) (W x H x D) Operating temperature: -20°C to +50°C Humidity: max. 80% rel., non-condensing Protection class: IP20 Installation: Mounting over a flush-mounted box
LCN-GTS2TB Issendorff KG
Nearfield Communication (NFC) transponder with two capacitive buttons and IR receiver; in black The LCN-GTS2T combines a Nearfield Communication (NFC) transponder reader for reading chip cards, a glass button panel with two sensor surfaces, and an infrared receiver. The reader supports NFC transponders of type ISO14443-A (Mifare/Legic) and ISO15693 (Legic). The buttons behind a stable glass plate provide the familiar signals of short, long, and release in the LCN system, depending on the type of activation. This allows a doorbell to be activated or lights to be turned on. The labeling of the sensor surfaces is done individually via foil. One red LED per button signals any status in the system as on, blinking, or flickering. Using the integrated infrared receiver, up to twelve additional functions can be triggered with the LCN-RT remote control, transmitting a user-defined code and its serial number for identification. The dimmable Corona® light ring serves, as with the LCN-GT glass button panels, for decorative wall lighting and as a subtle orientation light. Technical Data Dimensions: 75mm x 75mm
LCN-KE Issendorff KG
LCN-KE Issendorff KG Produktbeschreibung Der LCN-KE Issendorff KG ist ein innovatives Keyless Entry System, das eine moderne und komfortable Lösung für den Zugang zu Gebäuden bietet. Mit dieser Technologie können autorisierte Benutzer ihre Türen kontaktlos öffnen, indem sie einfach ein kompatibles Gerät in die Nähe des Türschlosses bringen. Anwendungsmöglichkeiten:- Zugang zu Wohngebäuden: Ideal für Privathaushalte, die Wert auf Sicherheit und Komfort legen. - Gewerbliche Nutzung: Perfekt für Büros und Geschäftsräume, wo ein schneller und sicherer Zugang erforderlich ist. - Veranstaltungsorte: Nützlich für temporäre Zugänge bei Events, wo eine flexible Zutrittskontrolle benötigt wird. Technische Daten - Automatische Erkennung: Das System erkennt autorisierte Geräte über Bluetooth, was ein kontaktloses Türöffnen ermöglicht. - Sicherheitsoptionen: Eine optionale Sicherheitsstufe kann aktiviert werden, die eine Bestätigung vor dem Entsperren erfordert. - Einstellbare Reichweite: Die Entsperr-Reichweite kann in der Pro+ Version individuell angepasst werden. - Abmessungen: Die Größe des Geräts beträgt 50 mm im Durchmesser und 12 mm in der Höhe. Fazit: Das LCN-KE Issendorff KG System bietet eine benutzerfreundliche und sichere Lösung für den Zugang zu verschiedenen Arten von Gebäuden. Mit seiner modernen Technologie und den flexiblen Anwendungsmöglichkeiten ist es eine hervorragende Wahl für alle, die Wert auf Sicherheit und Komfort legen.
LCN-GFPSB Issendorff KG
Fingerprint sensor; in black The LCN-GFPSB is a fingerprint sensor designed for the I-connection of any LCN module from firmware 190512. It provides secure and convenient access control by capturing fingerprint data and transmitting it over the LCN bus. With the ability to store up to 999 fingerprints, it is ideal for use in residential and commercial spaces. Application examples Integration into access control systems for residential complexes. Use in offices to ensure access only for authorized personnel. Increasing security in public institutions. Technical data Sensor: Fingerprint scanner for max. 999 fingers with live finger detection LEDs: 4 LEDs to indicate sensor status 16 white corona LEDs, controllable via the command "LED GT-brightness" in 10 levels Dimensions: 90mm x 90mm x 16.9mm (5mm glass thickness) (W x H x D) Operating temperature: -20°C to +50°C Humidity: max. 80% rel., non-condensing Protection class: IP20 Installation: Mounting above a flush-mounted box
LCN-GTS2TW Issendorff KG
Nearfield Communication (NFC) transponder with two capacitive buttons and IR receiver; in white The LCN-GTS2T combines a Nearfield Communication (NFC) transponder reader for reading chip cards, a glass keypad with two sensor surfaces, and an infrared receiver. The reader supports NFC transponders of type ISO14443-A (Mifare/Legic) and ISO15693 (Legic). The buttons behind a stable glass plate provide the familiar signals of short, long, and release in the LCN system, depending on the type of activation. Thus, a doorbell can be activated or light can be turned on. The labeling of the sensor surfaces is done individually via foil. One red LED per button indicates various statuses in the system as on, blinking, or flickering. Through the integrated infrared receiver, up to twelve additional functions can be triggered with the LCN-RT remote control, transmitting a user-defined code and its serial number for identification. The dimmable Corona® light ring serves, as with the LCN-GT glass keypads, for decorative wall lighting and as a subtle orientation light. Technical Data Dimensions: 75mm x 75mm
