Zubehör
LCN-IV Issendorff KG
Adapter for extending and duplicating the I-connection The LCN-IV is a versatile adapter used to extend and duplicate the I-connection. It allows the connection of up to two LCN-IV adapters to extend the I-connection with IY(ST)Y 2x2x0.8mm up to 50m. Additionally, the LCN-IVH functions as a pulse sensor that evaluates a 5V signal via potential-free contacts. Application Areas This adapter is ideal for applications where multiple sensors need to be operated on a bus module. It enables flexible and decentralized installation of sensors such as remote control receivers, temperature sensors, and binary sensors. Technical Data Frequency: maximum 500 Hz Dimensions: 14mm x 21mm x 12mm (W x L x H)
LCN-RSU Issendorff KG
Set for Residual Voltage Suppression for LED Lamps in Dimming Operation The LCN-RSU is an innovative set specifically designed for residual voltage suppression of LED lamps in dimming operation. It is connected in parallel to the load and prevents flickering and afterglow of LEDs or energy-saving lamps that are operated on electronic outputs. Application Areas Ideal for use in residential and commercial spaces where LED lighting is used. The LCN-RSU ensures stable and flicker-free lighting, which is particularly important in sensitive environments. Technical Data Contents: 1 package with 4 pieces
LCN-IVH Issendorff KG
Adapter for extending and duplicating the I-connection for the DIN rail The LCN-IVH is an extended version of the LCN-IV adapter, specifically designed for DIN rail mounting. It allows for the doubling of the I-connection and can also be combined with up to two LCN-IVH adapters to extend the range of the I-connection with IY(ST)Y 2x2x0.8mm up to 50m. The LCN-IVH additionally functions as a pulse sensor, evaluating a 5V signal via potential-free contacts. Application Areas This adapter is particularly useful in installations where multiple sensors need to be operated at a bus module. It enables flexible and decentralized installation of sensors such as remote control receivers, temperature sensors, and binary sensors. Technical Data Frequency: maximum 500 Hz Dimensions: 17mm x 92mm x 66mm (W x L x H) DIN rail mounting: 35mm, 1TE Protection class: IP20
LCN-NUI Issendorff KG
I-Connection Power Supply for Flush-Mounted Box The LCN-NUI is a power supply specifically designed for flush-mounted boxes, used to supply the LCN-GT switches via the I-connection.
BP-A5 Stellantrieb 230V mit Ventilanpassung VA
230V Actuator for Heating and Air Conditioning Technology The BP-A5 actuator is a cost-effective solution for continuous control of valves in heating and air conditioning systems. It is equipped with a pulse package control that allows the mains voltage to be pulsed phase-synchronously to the electronic outputs. This ensures precise control of the valve position. The actuator is delivered in a de-energized closed state and is equipped with a valve adjustment VA80. Further adjustments are available upon request. Technical Data Operating principle: Electrothermal actuator Operating voltage: 230VAC, 50-60Hz (de-energized closed) Actuation force: 100N +/-5% Protection class: IP54 / II Ambient temperature: 0 °C to +60 °C Operating power: 1W Connection cable: 2 x 0.75mm², length: 1m Dimensions: 48.4mm x 44.3mm x 52.2mm (W x L x H)
LCN-AVN Issendorff KG
230V Actuator for Heating and Air Conditioning Technology The LCN-AVN is a highly developed electrothermal actuator specifically designed for heating and air conditioning technology. It enables precise control of radiator valves and offers a cost-effective solution for continuous regulation of room temperature. The actuator operates with a mains voltage of 230VAC and is fail-safe, meaning it remains secure in the event of a power failure. Application Areas The LCN-AVN is ideal for use in residential and commercial properties where precise temperature control is required. It can be combined with various valves from different manufacturers to ensure optimal heating performance. Technical Data Operation: electrothermal actuator Operating voltage: 230VAC, 50-60Hz (fail-safe) Actuation force: 100N +/-5% Protection class/degree: II / IP54 Ambient temperature: 0 °C to +60 °C Operating power, current: 1.8W, 8mA Connection cable: 2 x 0.75mm2, length: 1m Dimensions: 60mm x 44mm x 61mm (W x L x H)
LCN-IK70 Issendorff KG
LCN - Micro Match 4-pole 70cm double-locking plug, 4 pieces The LCN-IK70 is a high-quality connection cable equipped with double-locking plugs. With a length of 70 cm, it is ideal for connecting LCN devices in various installations. The 4-pole design allows for versatile applications in building automation. Application Examples Cabling of LCN components Expansion of existing systems Technical Data 4-pole locking plug Length: 70 cm Delivery: 4 pieces
LCN-FI1 Issendorff KG
Interference Filter The LCN-FI1 is a highly developed interference filter designed specifically for use in combination with the LCN-UPP. It provides a separate filter circuit for each output with a maximum load capacity of 300VA. This filter protects the electronic outputs from voltage spikes and dampens harmonics that may occur during dimming. Application Areas The LCN-FI1 is particularly useful in applications where electronic loads such as fluorescent lamps with ballasts are operated. It ensures compliance with CE standards and protects against disturbances caused by inductive loads. Technical Data Dimensions: Ø 52mm x 20mm Protection Class: IP20
LCN-NH24 Issendorff KG
Low Voltage Power Supply 24V The LCN-NH24 is a low voltage power supply that provides a stable direct voltage of 24V required for the operation of 24V motors. It features a switchable polarity, which increases flexibility in application. The power supply is powered via connected switching outputs with 230V/50Hz, allowing for easy integration into existing systems. It is ideal for applications where a reliable and constant power supply for motors is needed, such as in roller shutters or blinds. Technical Data Maximum output power 12W Dimensions: 68mm x 92mm x 66mm (W x L x H) 35mm DIN rail mounting 4TE Protection class IP20
LCN-A6835 Issendorff KG
Adapter for flush-mounted boxes The LCN-A6835 is a practical adapter designed to reduce the size of flush-mounted boxes. With this adapter, the flush-mounted box can be reduced to 68mm x 35mm, allowing for flexible installation in various applications. Application Examples Adjustment of flush-mounted boxes for special buttons or modules Optimization of installation space in tight areas Technical Data Reduction of flush-mounted box to 68mm x 35mm Packaging: 5 pieces
LCN-NIH Issendorff KG
I-Connection Power Supply for DIN Rail The LCN-NIH is a high-quality power supply specifically designed for mounting on DIN rails. It provides a reliable power supply for the LCN-GT switches via the I-connection. With a wide supply range of 85V to 264V AC and a stabilized output voltage of 5V DC, this power supply is versatile and ideal for various applications in building automation. Application Areas The LCN-NIH power supply is excellent for use in modern smart home systems, where it ensures a stable power supply for the LCN-GT switches. It is ideal for integration into existing DIN rail systems and allows for easy installation and maintenance. Technical Data Supply Voltage: 85V – 264V AC, 50/60Hz Maximum Output Power: 2.5W Rated Voltage: 5V DC (stabilized) Input Wire Type: screwless, max. 2.5mm² or stranded with ferrule max. 1.5mm² Output Wire Type: screw terminals, solid or stranded with ferrule max. 0.5mm² Operating Temperature: -10°C to +40°C Humidity: max. 80% rel., non-condensing Dimensions: 38mm (2TE) x 92mm x 66.5mm / on mounting rail 35mm Protection Class: IP20
LCN-NUI24 Issendorff KG
Underfloor Power Supply for I-Connection, 24V The LCN-NUI24 is a powerful 24 Volt power supply designed for flush-mounted installation. It supplies the required operating voltage to the LCN-GT(S) switches operated at the T and I connections. This power supply is ideal for integration into modern building automation systems, where it ensures a reliable power supply. Application Areas The LCN-NUI24 can be integrated into the I connection line and supplies the components at the I and T connections with operating voltage. When using the power supply, the surface light guide FLL and especially the Corona® light ring of the LCN-GT(S) touch sensors are available, which enhances the user experience. Hardware Features Three connections for the I connection
LCN-C2GR Issendorff KG
Basic load module for flush-mounted boxes The LCN-C2GR is a compact basic load module designed for decentralized installation in flush-mounted boxes. It generates a capacitive reactive power of 5VA per RC element, making it an excellent choice for integration into modern home automation systems. Application Areas This module is ideally suited for use in conjunction with LCN push-button inputs or other electronic controls to enable reliable and efficient control of lighting and other electrical devices. Technical Data Power loss: 0.2 W Dimensions: 52mm Ø x 10mm Protection class: IP20
LCN-SKO Issendorff KG
Training Case The LCN-SKO is the training case of the LCN bus system. It offers a comprehensive basic equipment that includes two intelligent bus modules, a sensor keypad, a remote control, an IR receiver, as well as a coupling module and the LCN-PRO software. This case allows for an easy entry into the LCN world and is ideal for training and demonstrations. Application Examples Training for installers and technicians Demonstrations of LCN technology in educational institutions Building small systems for familiarization with the technology Technical Data Includes LCN-UPU and LCN-SH modules Coupler: LCN-PKU2 Remote controls: LCN-RT and LCN-RR Sensor button: LCN-GT8W Accessories: cables, connectors, documentation Software: LCN-PRO+ license

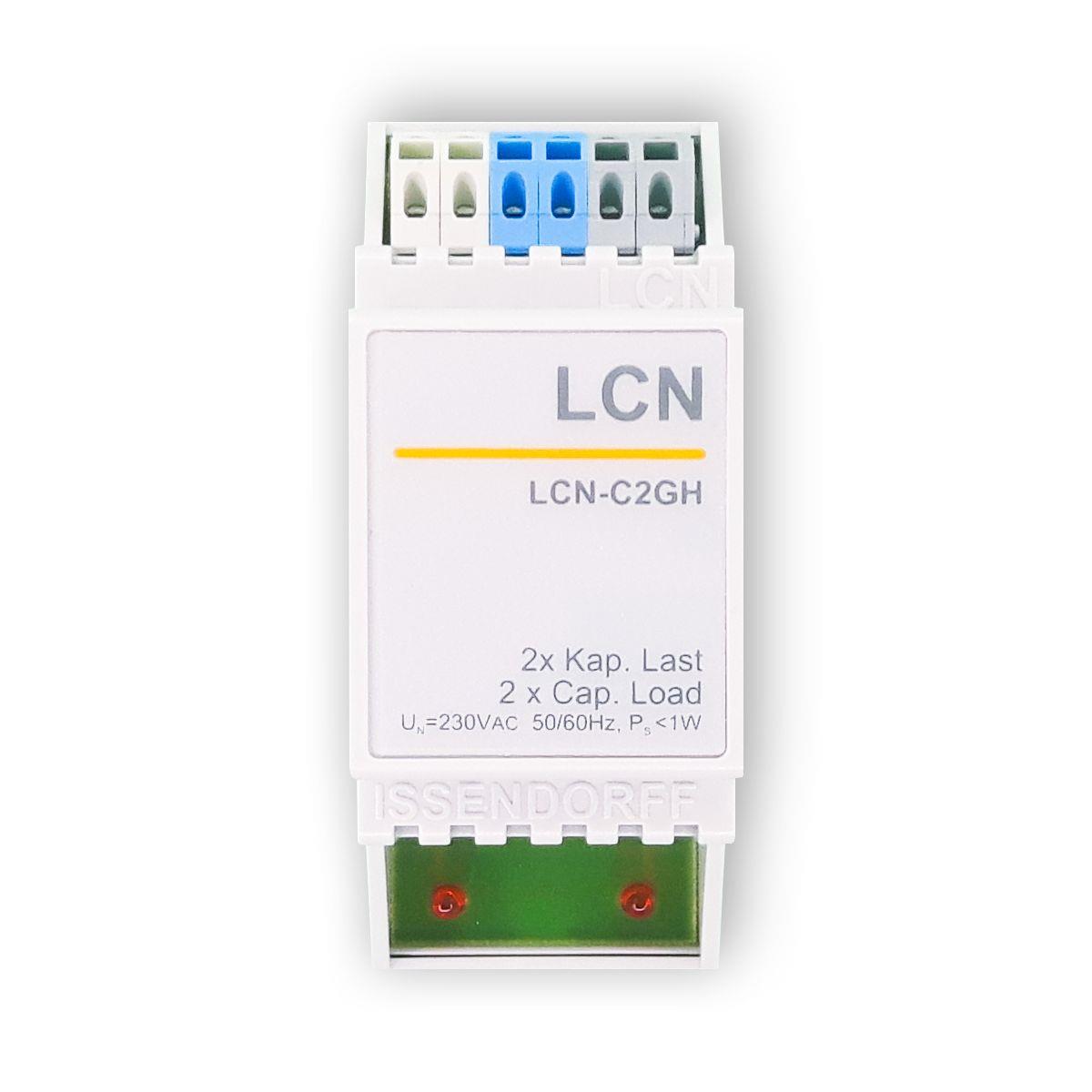

LCN-C2GH Issendorff KG
Basic Load Module for DIN Rail The LCN-C2GH is an essential basic load module specifically designed for mounting on DIN rails in electrical distributions. It enables the generation of reactive loads required for the operation of electronic devices. With two integrated RC elements, the module generates 5VA of reactive load each, making it ideal for use in modern building automation systems. Application Areas The LCN-C2GH is used in building automation, particularly in systems that rely on the Local Control Network (LCN). It is perfectly suited for controlling LCN outputs or button inputs to ensure reliable and efficient control of lighting and other electrical devices. Technical Data Power Loss: 0.2 W Status LED: Yes Dimensions: 34.5mm x 92mm x 66mm (W x L x H) DIN Rail Mounting: 35mm, 2TE Protection Class: IP20
LCN-K3 Issendorff KG
Terminal Block The LCN-K3 is a practical 3-pole terminal block designed for diagnostic plug connections in distribution boards. It is particularly suitable for systems where no LCN-PK is permanently installed. The terminal block allows for a simple and secure connection between various components of the LCN system. Application Areas The LCN-K3 is frequently used in building automation to enable flexible and modular wiring. It is ideal for use in distribution boards where quick and easy installation is required. Technical Data Dimensions: 17mm x 75mm x 52mm (W x L x H) DIN Rail Mounting: 35mm, 1TE Protection Class: IP20
LCN-AVC Issendorff KG
0-10V Puls-Proportional Actuator for Heating and Air Conditioning Technology The LCN-AVC is a highly developed electrothermal actuator that operates with a 24V supply and a 0-10V control. It is designed to control multiple radiators with the same regulator in large rooms. The actuator opens and closes the valve proportionally to the input signal (0-10V), ensuring that all heating circuits controlled in the room provide uniform heating performance. Application Areas This actuator is ideal for use in large commercial and industrial applications where precise and uniform temperature control is required. It can be combined with various valves from different manufacturers. Technical Data Operation: electrothermal actuator (proportional per connection) Operating Voltage: 24V AC 50-60Hz, 0-10V DC (fail-safe closed) Actuating Force: 100N +/-5% Protection Class/Grade: II / IP54 Ambient Temperature: 0 °C to +60 °C Operating Power, Current: 1.8W Connection Cable: 3 x 0.22mm2, Length: 1m Dimensions: 60mm x 44mm x 64mm (W x L x H)
LCN-NU9 Issendorff KG
Power Supply 9V= for the flush-mounted box The LCN-NU9 is a compact DC power supply specifically designed for flush-mounted boxes. It provides a reliable power supply for LCN peripheral devices that operate at voltages in the range of 9 volts. This power supply is ideal for applications where space and efficiency are critical. Application Areas The LCN-NU9 is excellent for powering LCN components in residential and commercial properties. It is particularly useful in installations where space is limited and efficient energy supply is required. Technical Data Supply Voltage: 230V ±15%, 50Hz Output Power: maximum 1W Nominal Voltage: 9V at 60mA nominal load No-load Voltage: 30V Dimensions: 52mm Ø x 20mm Protection Class: IP20
Dagon SPL-3
Dagon SPL-3 DMC512 The SPL-3 controller is an advanced and user-friendly device for controlling colored LEDs, RGB LED strips, or single-color LEDs via three independent channels. It offers a variety of control options that can vary depending on the selected operating mode of the controller: DMX-512 Signal: Allows control via professional DMX controllers. Manual Control: Two buttons (BRIGHTNESS and COLOR) for direct adjustment of brightness and color. Analog Control: Via 0-10V signals, ideal for analog control systems. Standalone Operation: The SPL-3 can execute various sequences of color changes with user-defined speed and brightness. Technical Data Supply Voltage: 9-24 V DC Maximum Current Consumption: 30 mA Number of PWM Outputs: 3 (CH1 R, CH2 G, CH3 B) Output Type: Open Collector (N-MOSFET) Output Polarity: Common Positive (common anode) Load Capacity per Output: 4A PWM Signal Resolution: 16 Bit PWM Signal Frequency: 244 Hz Control Types: Depending on the operating mode of the SPL-3 (Buttons, Analog, DMX) Temperature Range: +5 °C to +45 °C, dry rooms Dimensions: 65 x 37 x 25 mm
LCN-NDH Issendorff KG
DALI Power Supply for DIN Rail The LCN-NDH is a DALI power supply specifically designed for use with the LCN-HU module. It enables the operation of the DALI bus in energy-efficient DALI-LCN mode (low level) and ensures that the lights are automatically turned on in emergency operation if the control fails. Application Areas Supply of DALI operating devices in commercial and private applications. Emergency lighting systems that require automatic activation of the lights. Integration into existing DALI systems to improve energy efficiency. Technical Data Supply Voltage: 230V AC, 50/60Hz Power Consumption: 1.5W Maximum Number of DALI Participants: 32 EVGs Operating Temperature: -10°C to +40°C Protection Class: IP20 Dimensions: 38mm (2TE) x 92mm x 66.5mm
LCN-WB22 Issendorff KG
LCN-WB22 Wallbox for Electric Cars The LCN-WB22 is a powerful wallbox designed for AC charging of electric cars with a Type 2 connector. With a maximum charging power of 22 kW, it is the ideal solution for users who need a fast and efficient charging option. Integration into Smart Home Systems Thanks to the LCN data connection, the wallbox can be fully integrated into an LCN Smart Home system. This allows for easy control and monitoring via various LCN components, including buttons and visualizations (LCN-GVS and LCN-VISU). Application Areas The LCN-WB22 is particularly suitable for: Commercial charging scenarios where multiple electric vehicles need to be charged simultaneously. Private households with high charging needs, e.g., with multiple electric vehicles. Integration into solar systems to utilize solar surpluses during the charging process. Technical Data Charging Power: 22 kW Connector: Type 2 Additional Outputs: Two dimmable outputs for lighting Energy Management: LCN Energy Management System Dimensions: 222 x 369 x 130 mm (W x H x D) Mounting: Screw mounting Manufacturer Number: 30368
LCN-NH12 Issendorff KG
Low Voltage Power Supply 12V The LCN-NH12 is a compact low voltage power supply that provides a stable DC voltage of 12V, which is required for the operation of 12V motors. It offers a switchable polarity, increasing flexibility in application. The power supply is powered via connected switching outputs with 230V/50Hz, allowing for easy integration into existing systems. It is ideal for applications where a reliable and constant power supply for motors is needed, such as for roller shutters or blinds. Technical Data Maximum output power 12W Dimensions: 68mm x 92mm x 66mm (W x L x H) 35mm DIN rail mounting 4TE Protection class IP20

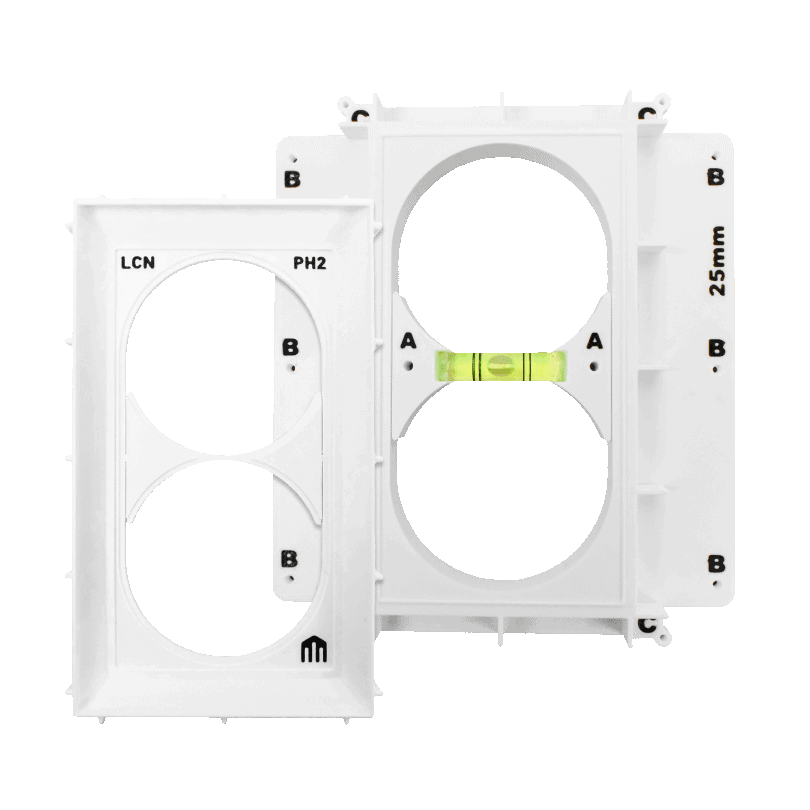

LCN-PH2 Issendorff KG
LCN-PH2 Issendorff KG Einbaurahmen für den flächenbündigen Einbau von LCN-GT-Tastern in Hohlwänden Der Einbaurahmen LCN-PH2 ermöglicht eine flächenbündige Montage der Taster in Hohlwänden. Ideal für moderne Wohnräume und Büros. Lieferung mit Montagehilfsmitteln für eine einfache Installation.
LCN-PH1 Issendorff KG
LCN-PH1 Issendorff KG Einbaurahmen für den flächenbündigen Einbau von LCN-GT-Tastern in Hohlwänden Der Einbaurahmen LCN-PH1 ermöglicht eine flächenbündige Montage der Taster in Hohlwänden. Ideal für moderne Wohnräume und Büros. Lieferung mit Montagehilfsmitteln für eine einfache Installation.
